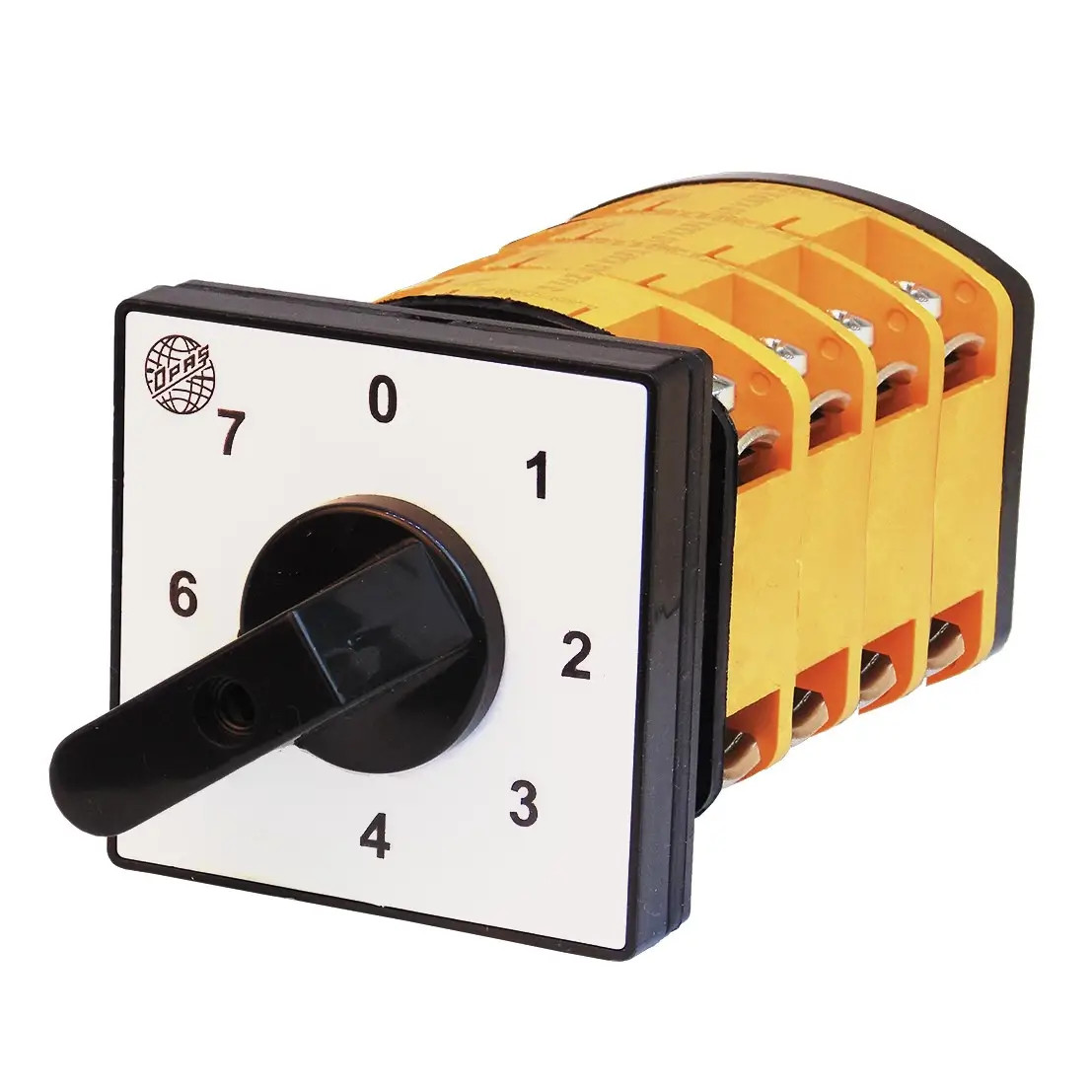

Commutator group 0-1-2-3-4-5-6-7 stepped cam packet switch

Description

Step/step commutator switch of rotary cam packet group 0-1-2-3-4-5-6-7, YPT117K, manufacturer OPAŞ (Turkey)

• 1 pole,
• 10A, 16A, 25A, 32A, 40A, 63A
• 0-1-2-3-4-5-6-7

The group switch is designed to switch stages sequentially while maintaining previously switched stages. For example, it can be used when sequencing three heating elements of 1 kW each – including the sequential elements, a heating output of 1 kW, 2 kW, 3 kW, 4kW can be created…… 7kW
