Commutator group 0-1-2-3-4 stages step cam packet switch

Description

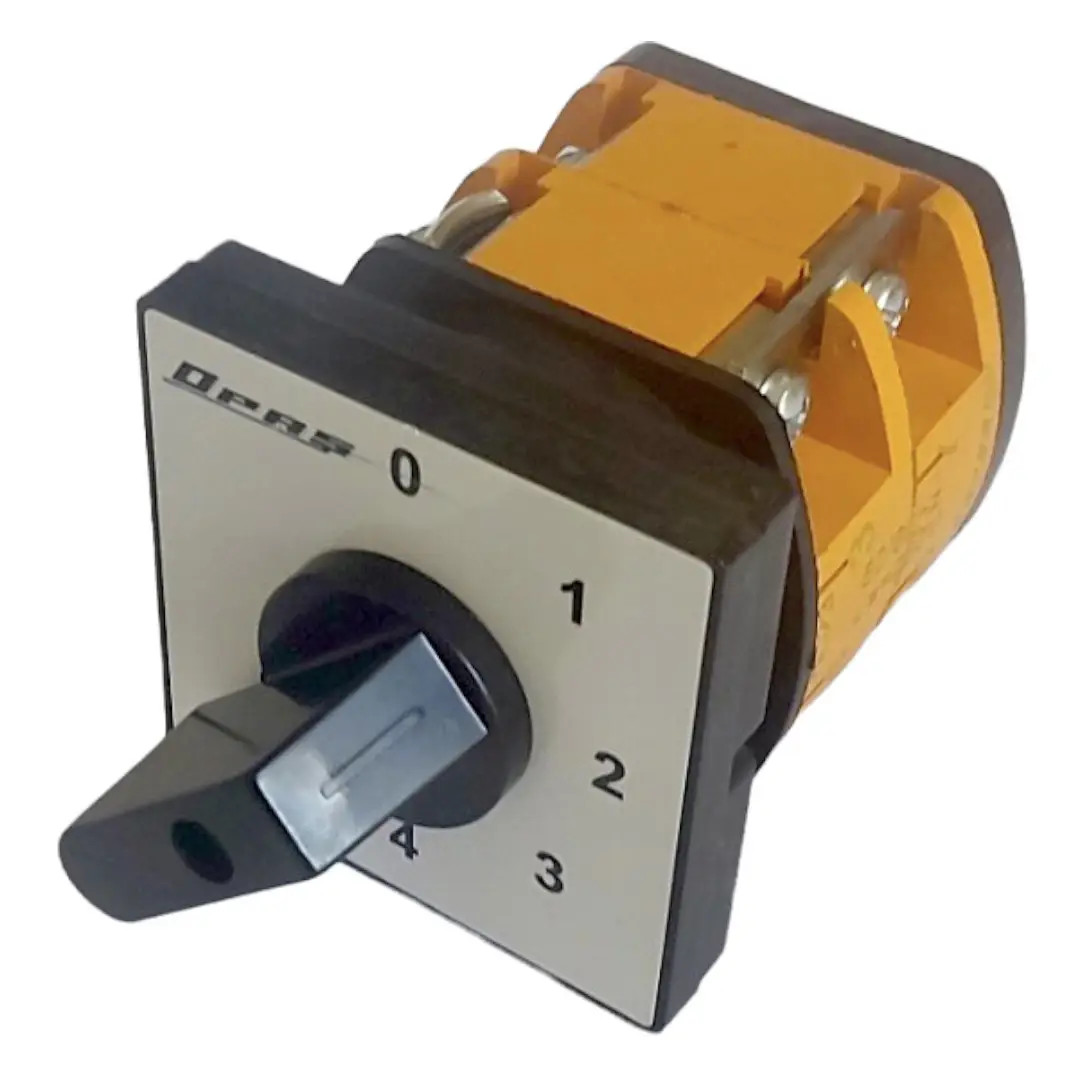

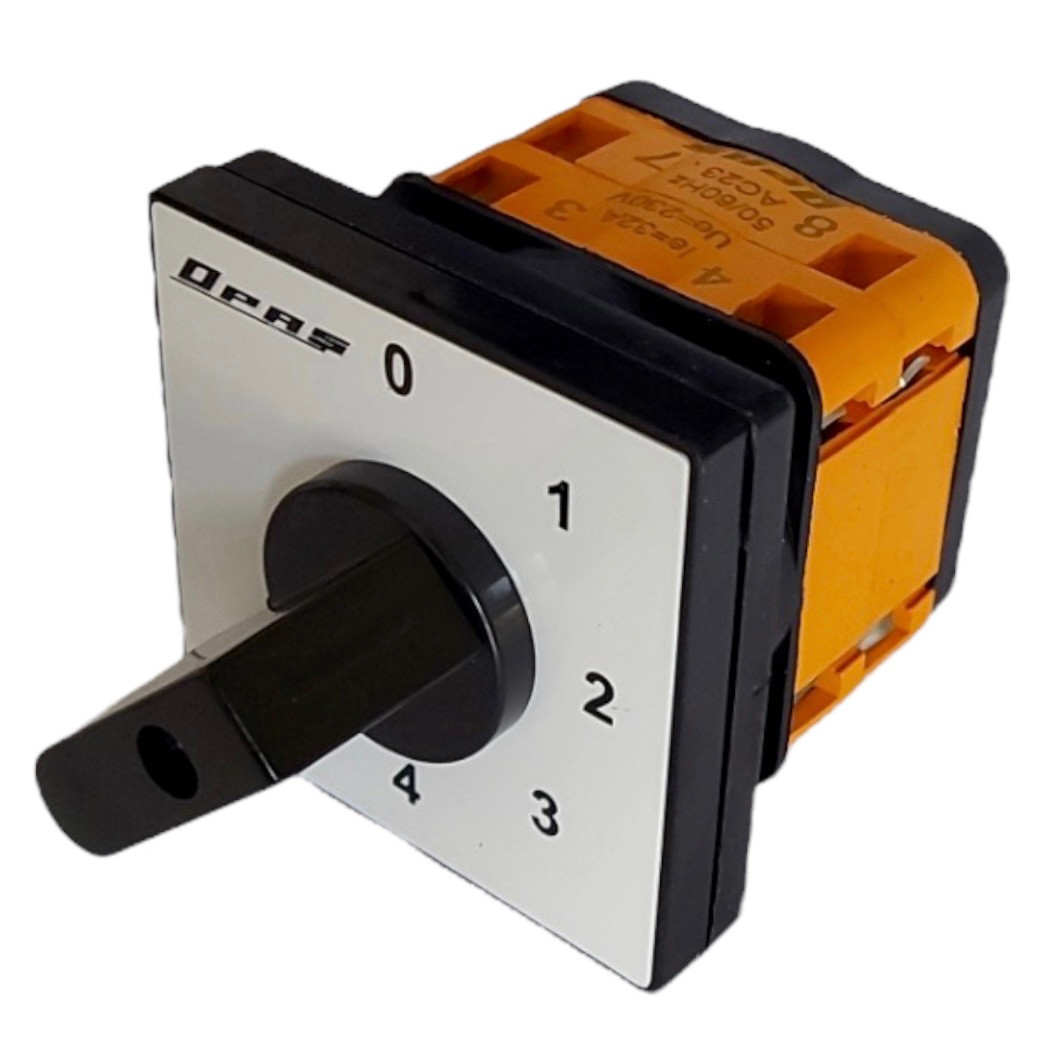

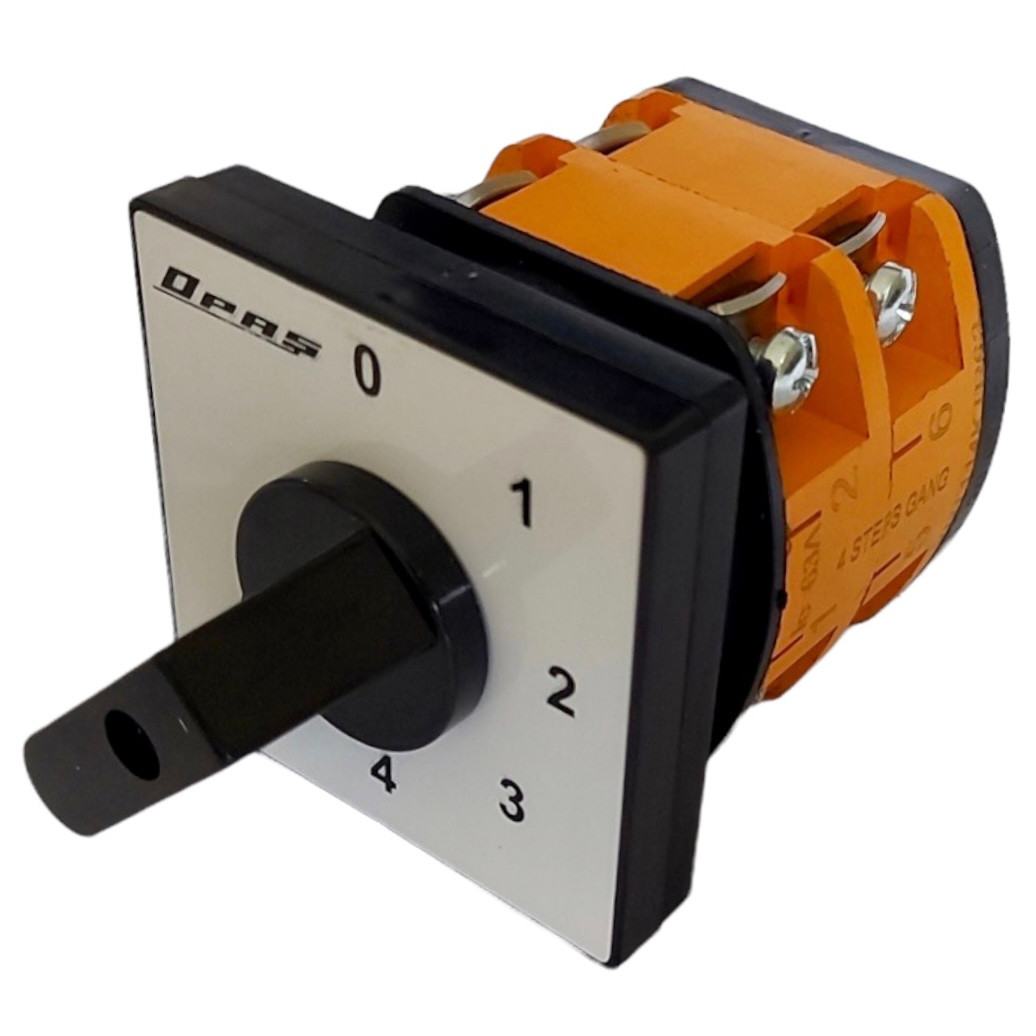

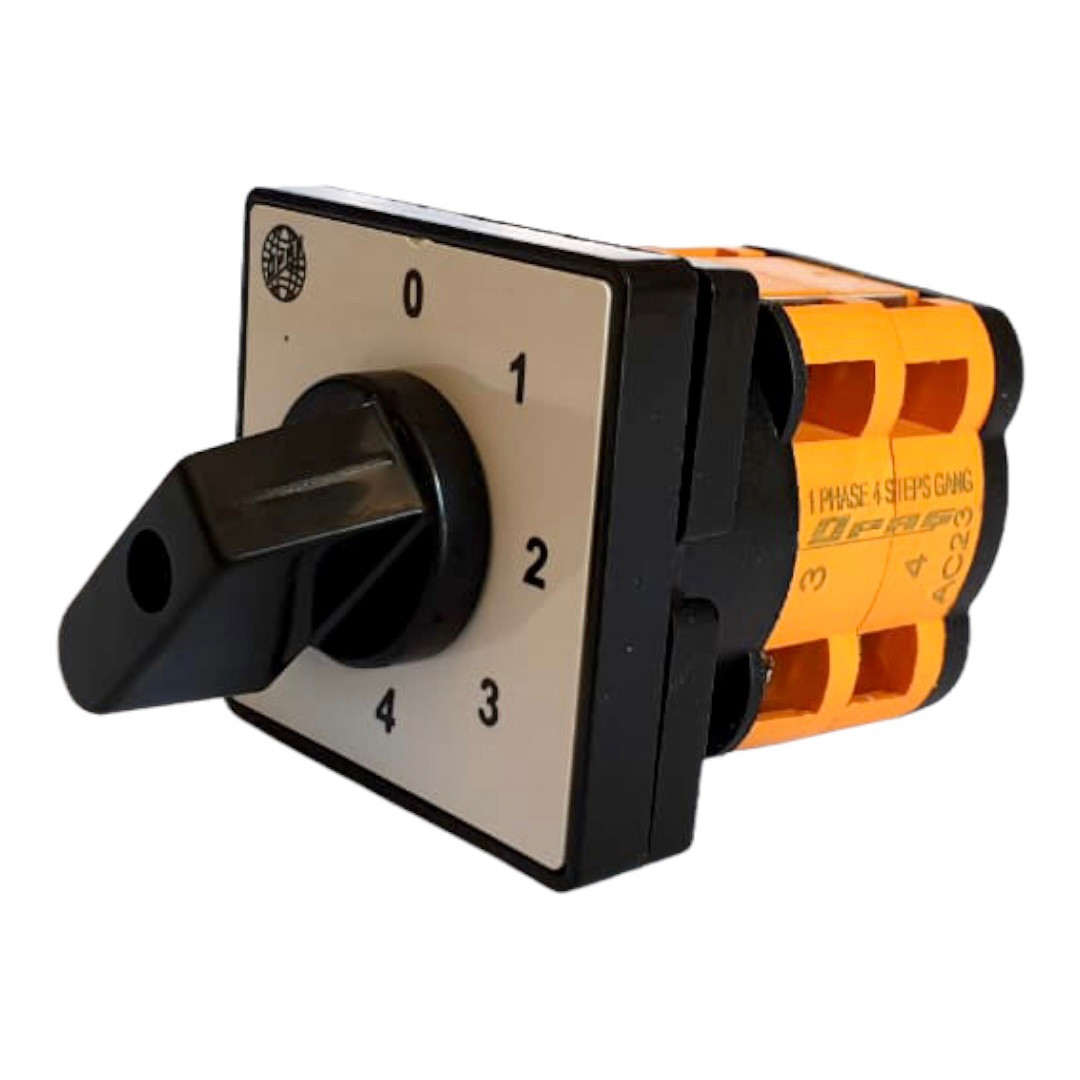

0-1-2-3-4 rotary cam packet group step/step commutator switch, YPT114K, manufacturer OPAŞ (Turkey)

• 1 pole,
• 10A, 16A, 25A, 32A, 40A, 63A, 80A, 100A

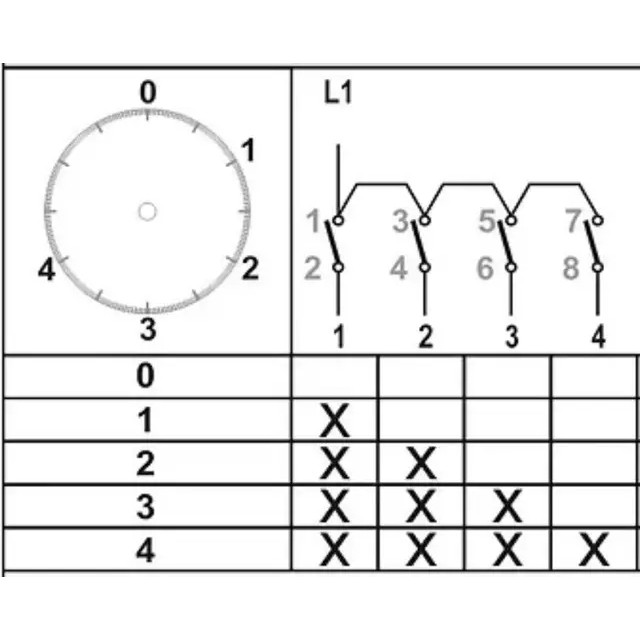

• 0-1-2-3-4

The group switch is designed to switch on stages sequentially while maintaining previously switched on stages. It can be used, for example, when three heating elements of 1 kW each are connected in series – including successive heating elements, a heating output of 1 kW, 2 kW, 3 kW or 4 kW can be created.
