Commutator group 0-1-2-3 stages step cam packet switch

Description

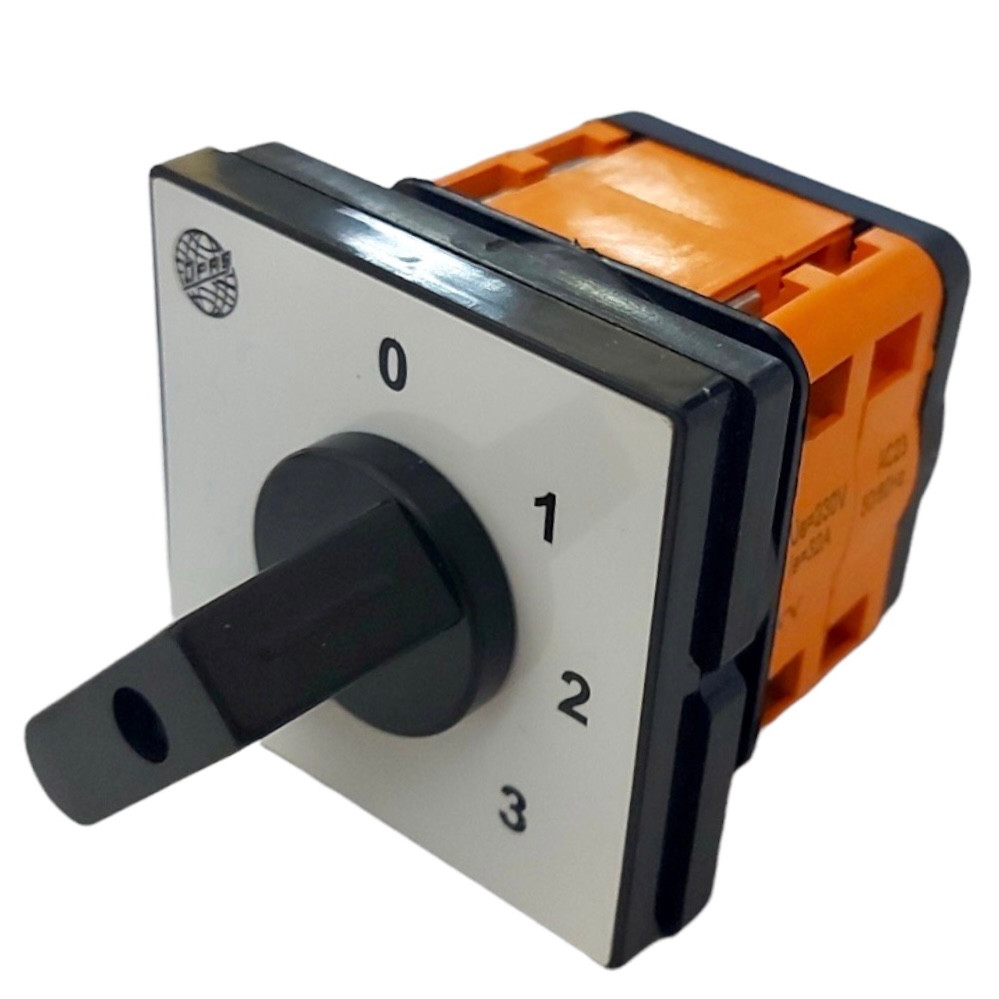

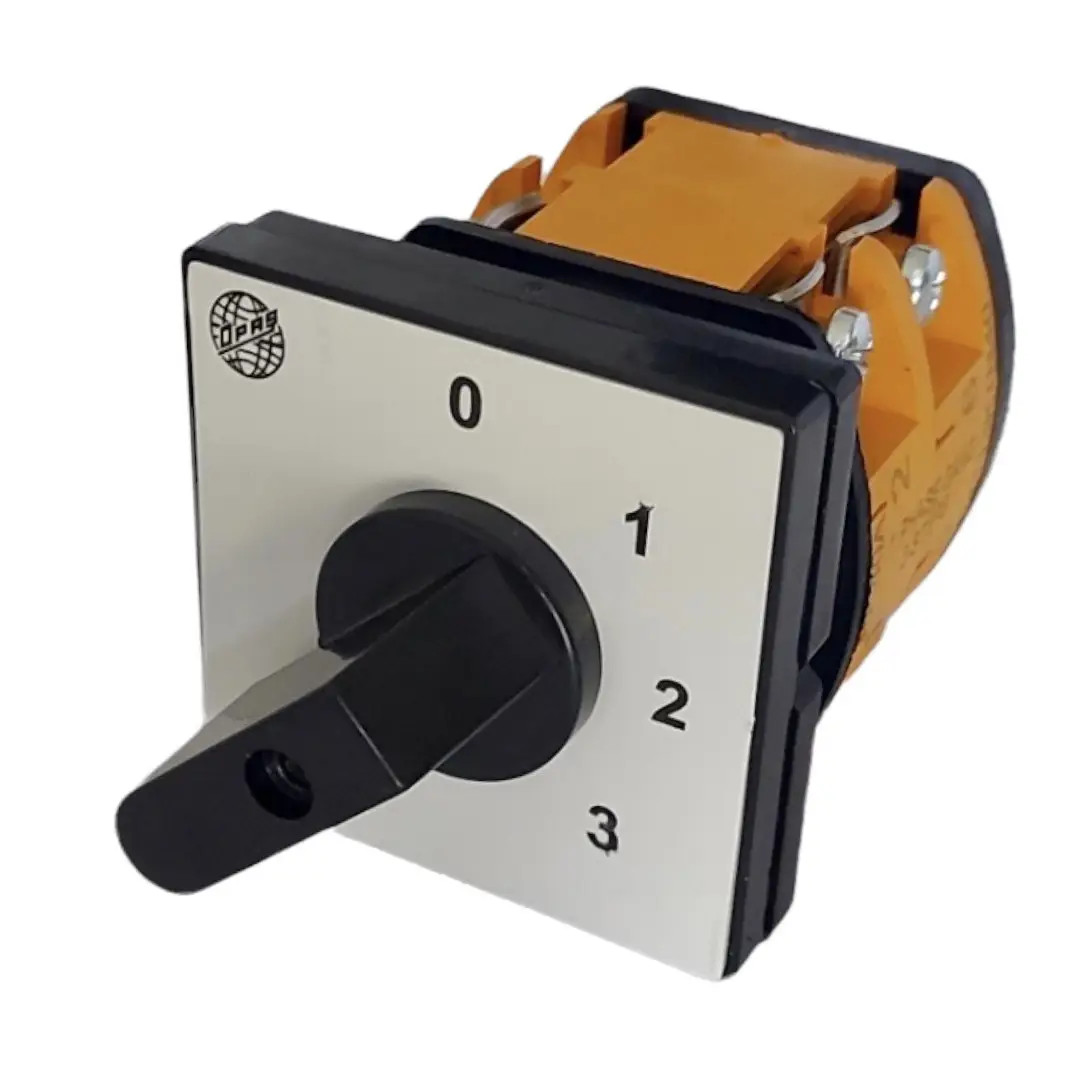

Commutator Switch 0-1-2-3, YPT113K, manufacturer OPAŞ (Turkey)

• 1 pole,
• 10A, 16A, 25A, 32A, 40A, 63A

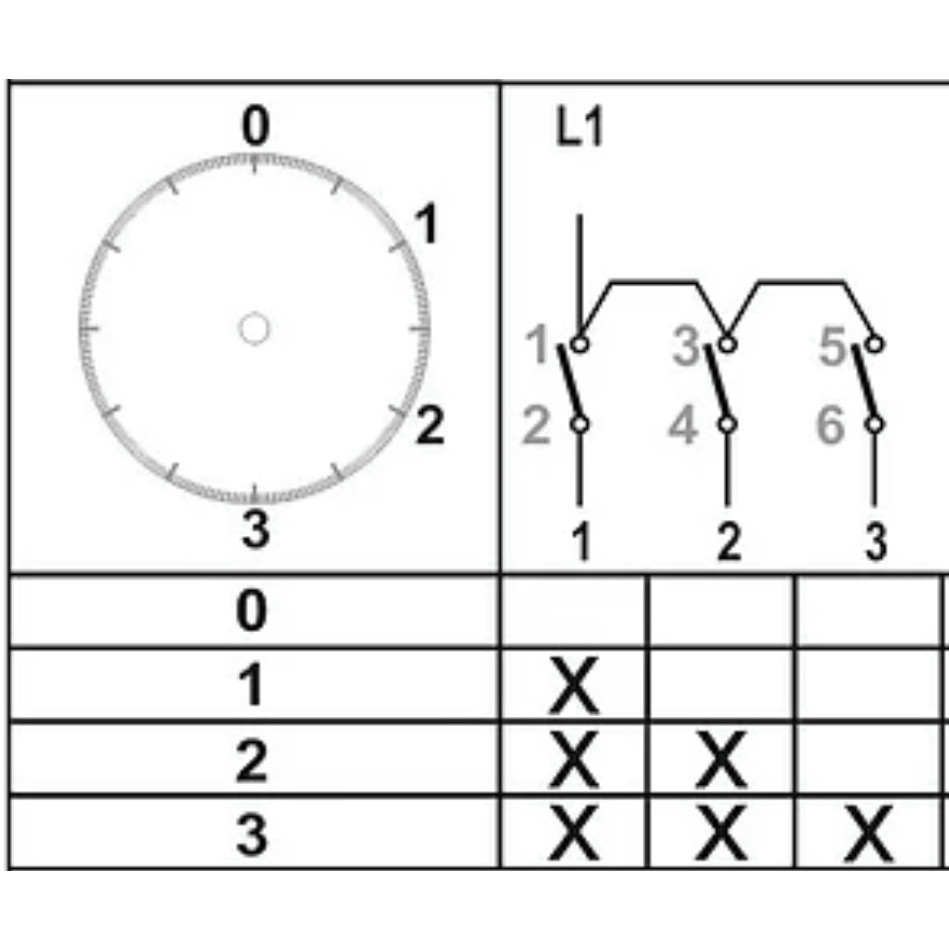

• 0-1-2-3

The batch switch is designed to switch stages sequentially while maintaining previously switched stages. For example, it can be used when sequencing three heating elements of 1 kW each – including the sequencing elements you can create a heating output of 1 kW, 2 kW or 3 kW.
