DJ-V - built-in digital panel voltmeter for AC voltage 1-500 V, panel meters
Price range: 35,88 € through 46,37 €
Frequency counter / frequency counter / frequency meter panel digital built-in 1-400Hz
Price range: 35,88 € through 46,37 €
Description

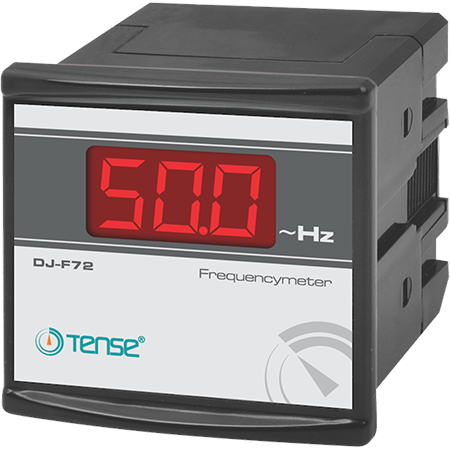

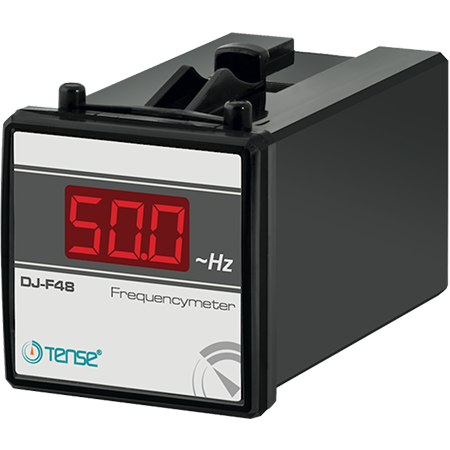

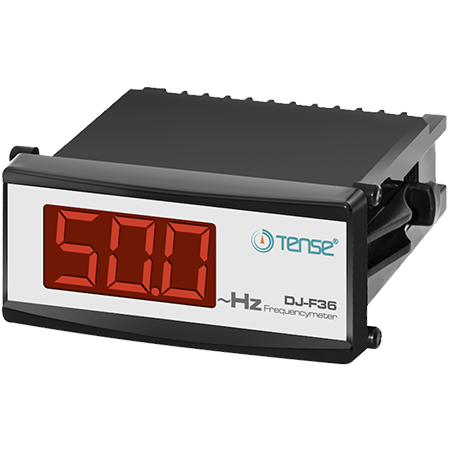

DJ-F – panel frequency meter / digitalbuilt-in frequency meter 1-400Hz (15-500V AC), TENSE panel meters
Technical data
Mounting dimensions: 91×91 mm (DJ-F96), 68×68 mm (DJ-F72), 46×46 mm (DJ-F48) and 31×72 mm (DJ-F36).
Measurement accuracy: ±%1
Operating voltage (Un): 140V – 270V AC
Operating frequency: 50/60 Hz.
Operating power: <6VA
Connection type: Plug-in terminal
Fixing: Plug-in module with socket connection: Fixing: clamping yoke
Operating temperature: -20 °C …. +55 °C
