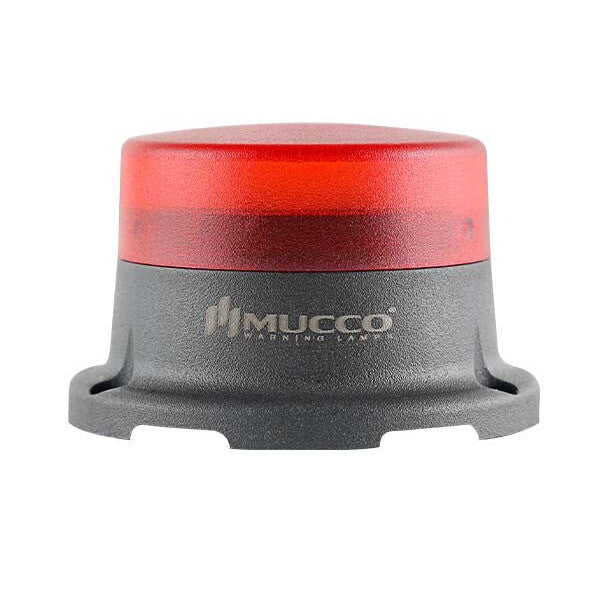

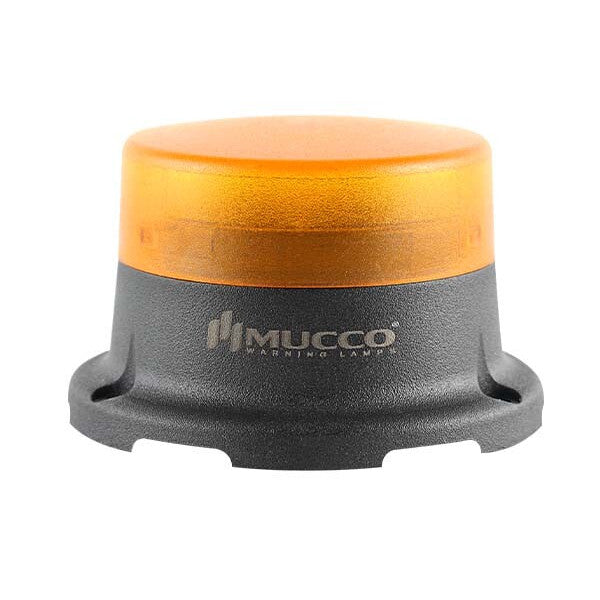

SNT-M725, SNT-M715 signal beacon with buzzer, ø70mm

Rated voltage, starting current

24 V DC 110-150 mA ±10 % (SNT-M715)

40-250V AC/DC,

78-95mA ±10% 50-60 Hz (SNT-M725)

Degree of protection

IP65, water, dust, heat and UV resistance

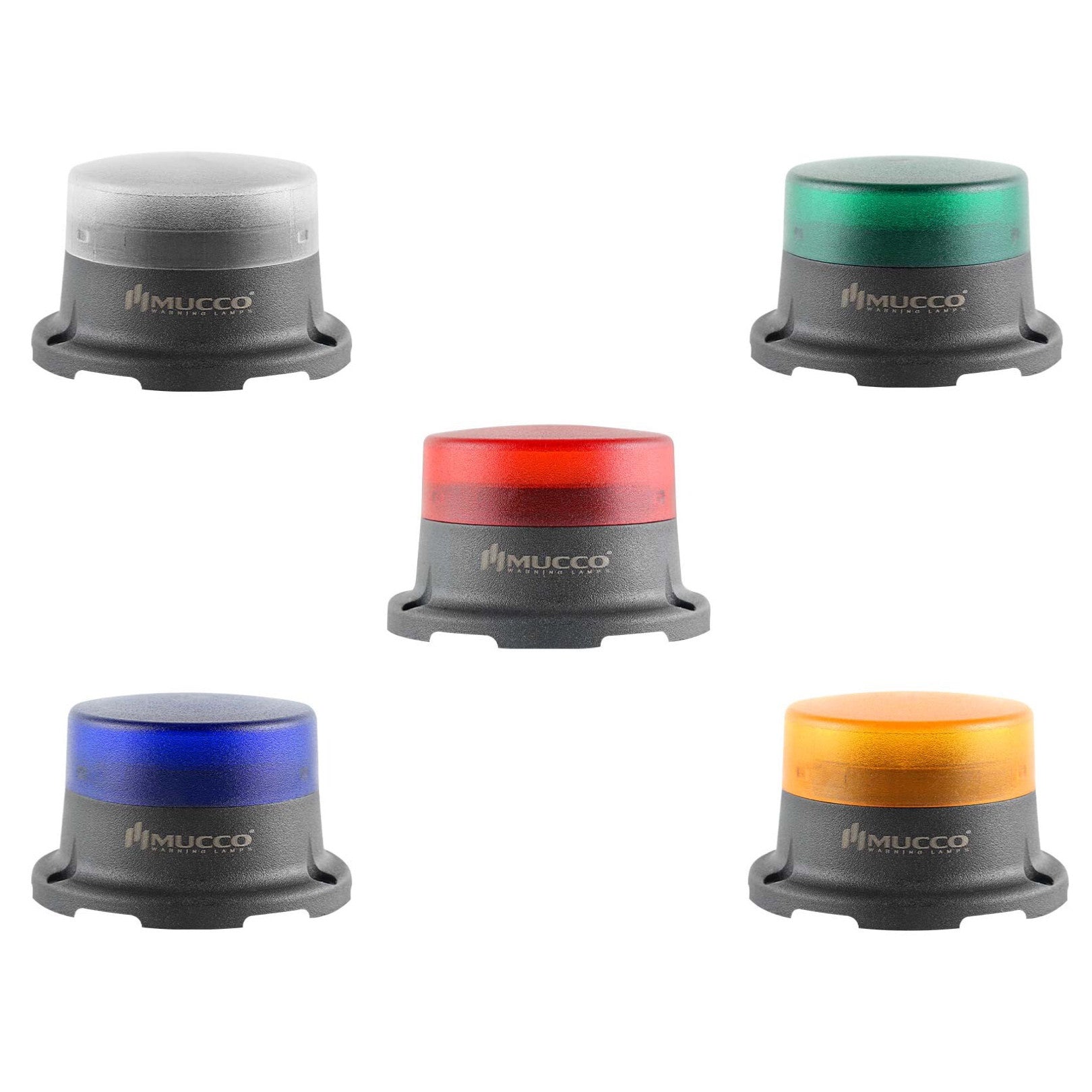

Cover colour

Red, yellow, green, blue, white

Light source

SMD LED

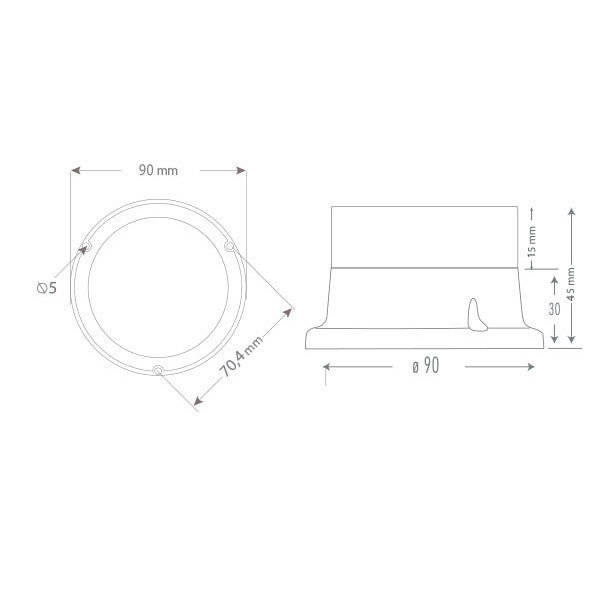

Cover diameter

ø70 mm

Volume

94 ~ 100 dB/1 m (3.3 ft)

Opticalsignaltype

steady light, flicker

Acoustic signal type

Buzzer, 1 ton

Input response

On/off: max. 10 ms

Operating temperature

-20 °C to +50 °C (-4 °F to +122 °F)

Life expectancy

Minimum 50,000 hours

Material

ABS (body) + polycarbonate (cover)

Mounting method

Surface, wall

Certificates and quality documents

ISO-9001, CE, RoSH2 and EAC
