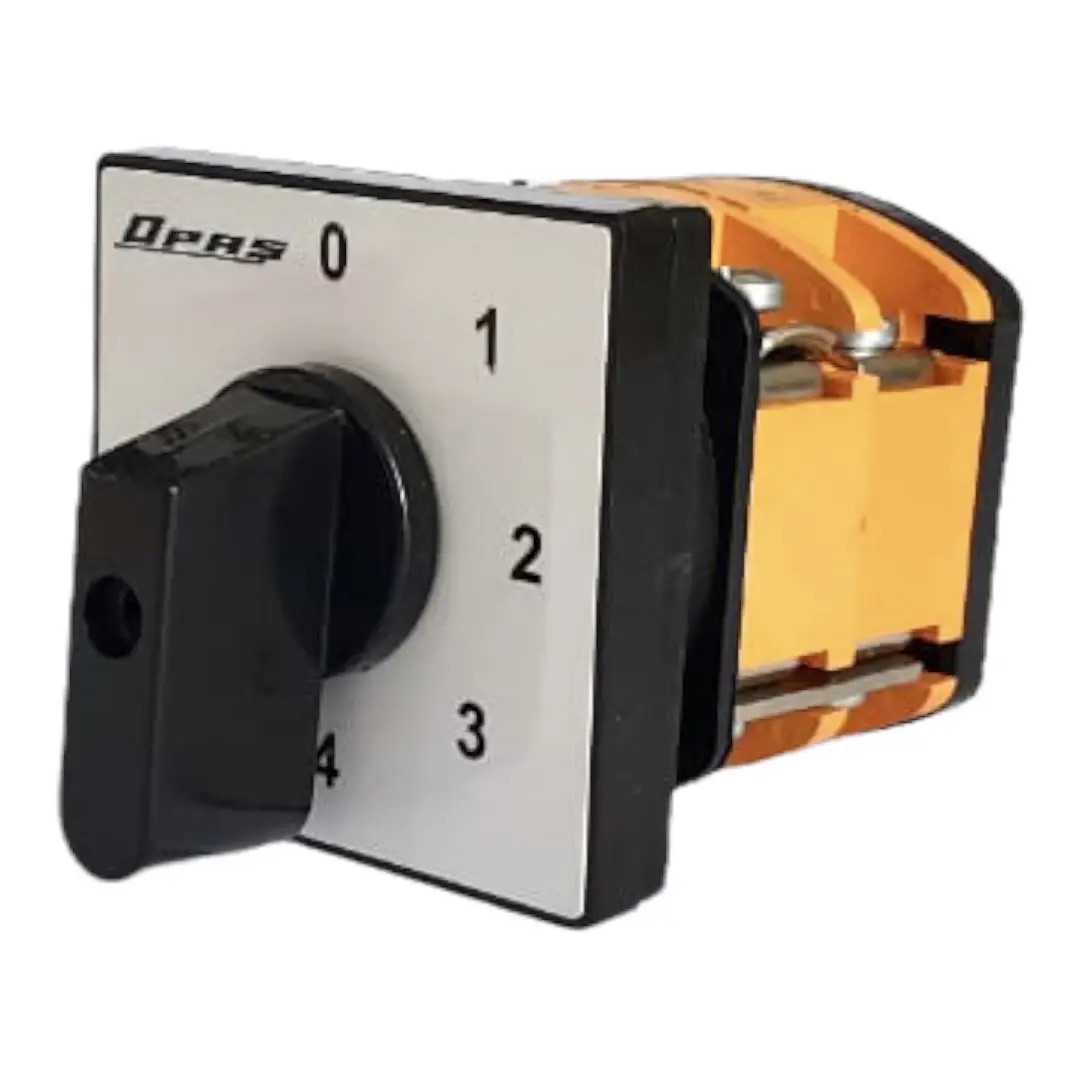

Step switch 0-1-2-3-4 degree rotary switch, 1-2 poles, 10-160A Price range: 18,03 € through 165,88 €
Back to products
7bd2cd2b54a43a154c35e54a5359fcac
Group switch with key/lock I-0-II, 1-0-2, ON/OFF Price range: 28,80 € through 48,30 €

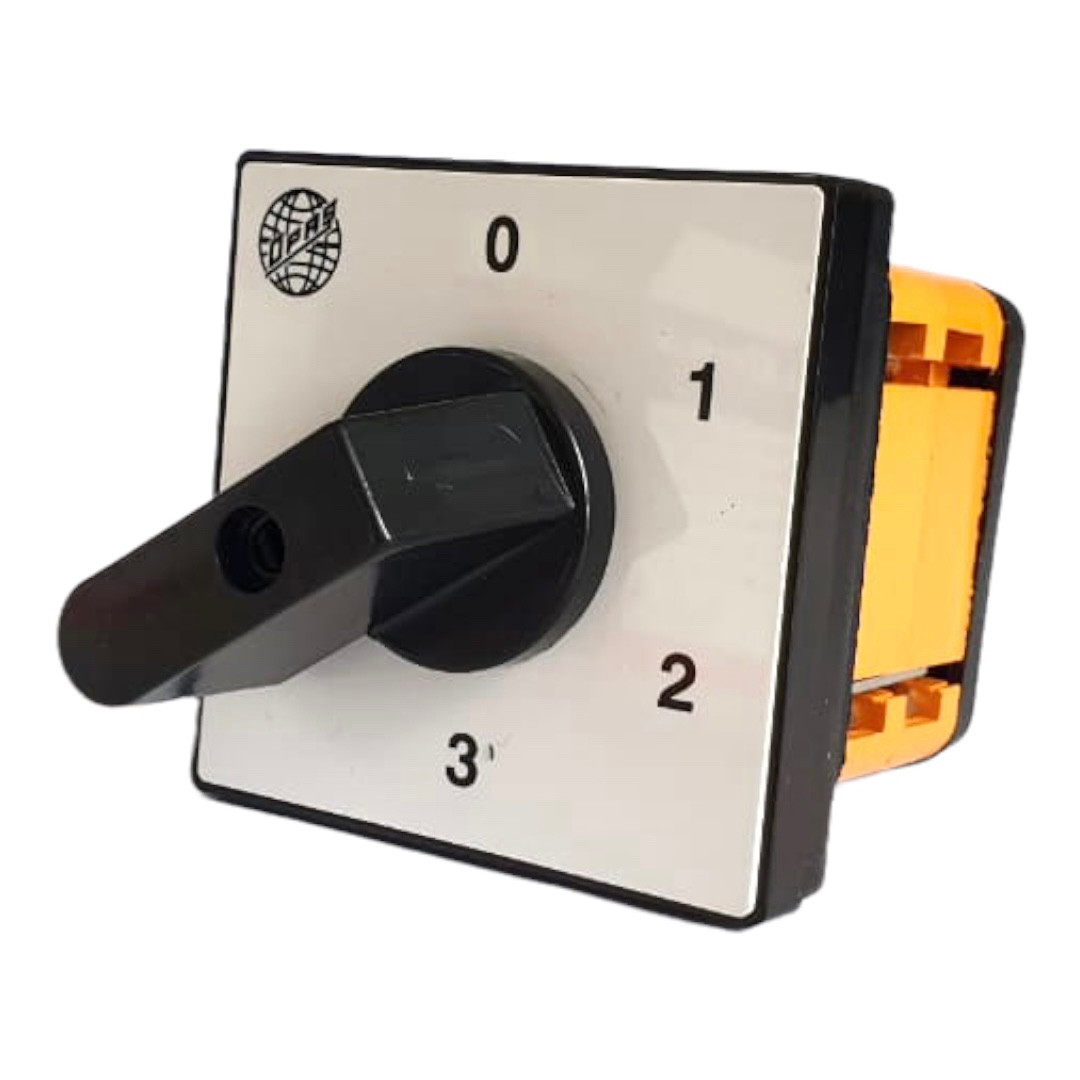

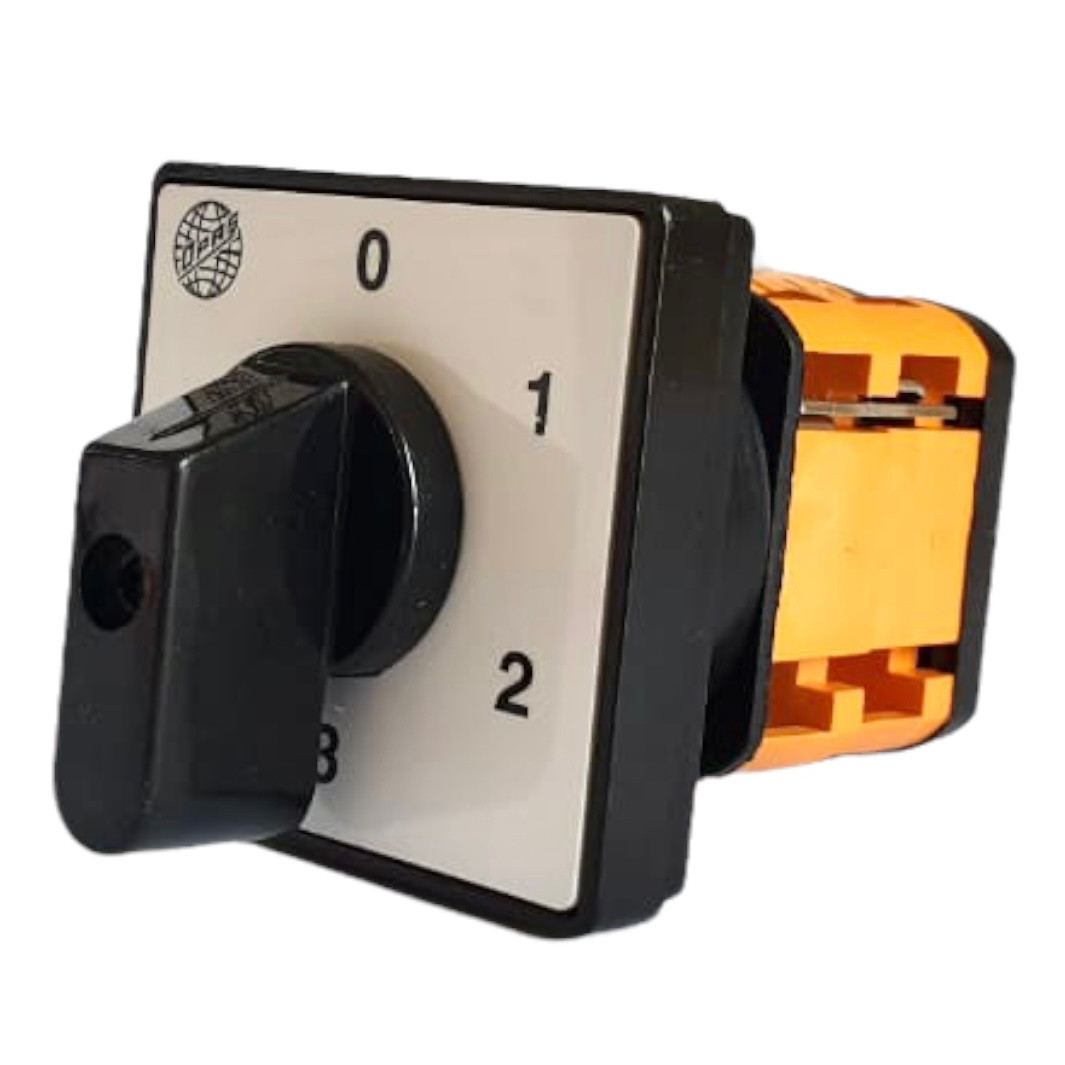

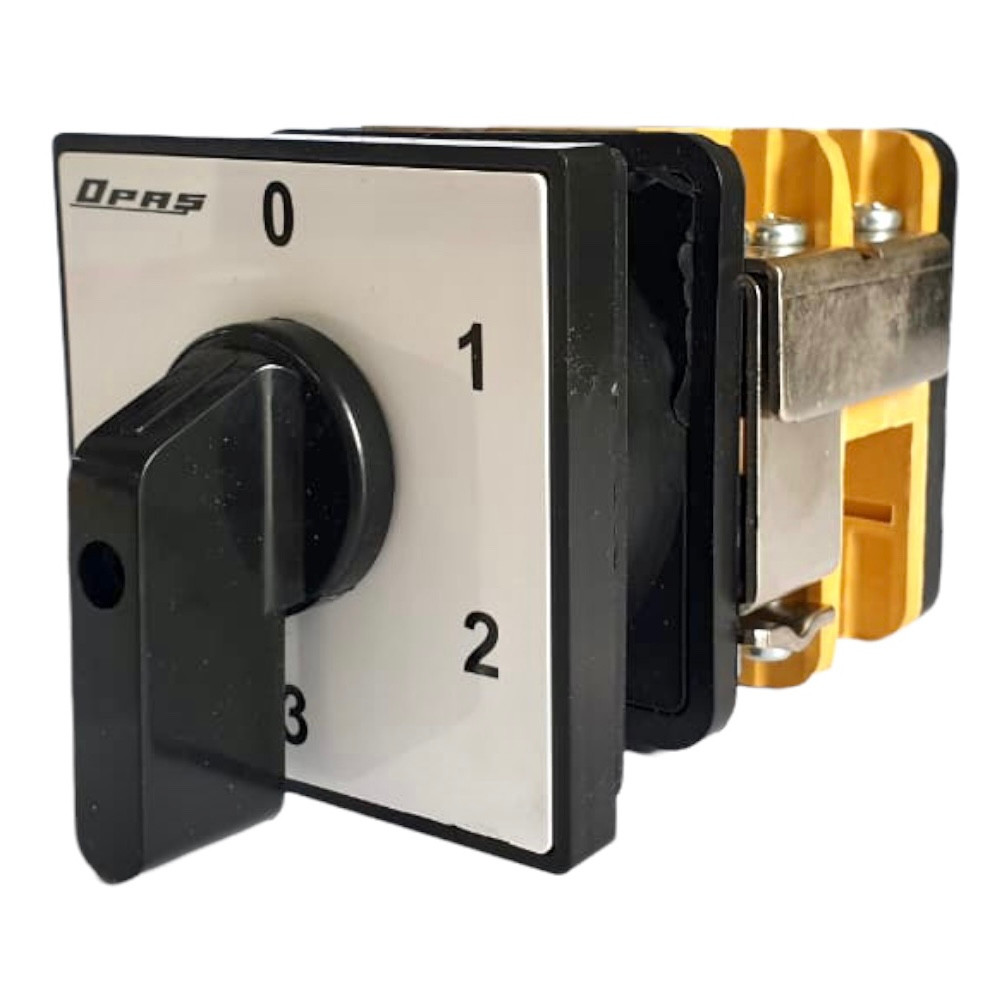

Step switch 0-1-2-3 degree rotary switch

SKU: N/A

Price range: 16,61 € through 146,37 €

Description

Step switch 0-1-2-3, rotary switch, 1-2 poles, 10-160A, YPT113 / YPT213, manufacturer OPAŞ (Turkey)

  • 10A, 16A, 25A, 32A, 40A, 63A, 100A,125A, 160A

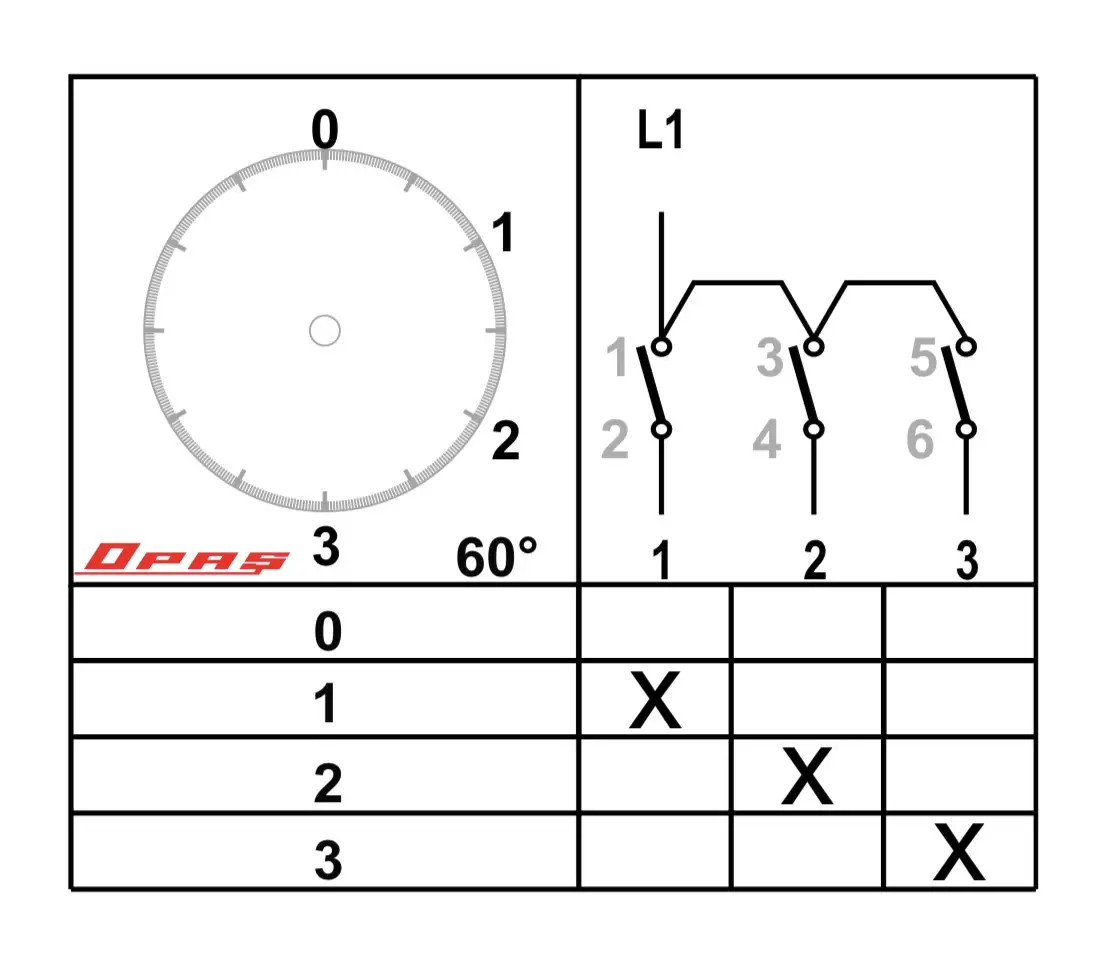

The 0-1-2-3 step switch can be used, for example, to select one of the three phases to power single-phase electrical appliances or to switch on one of several appliances/modes/processing program steps, etc.

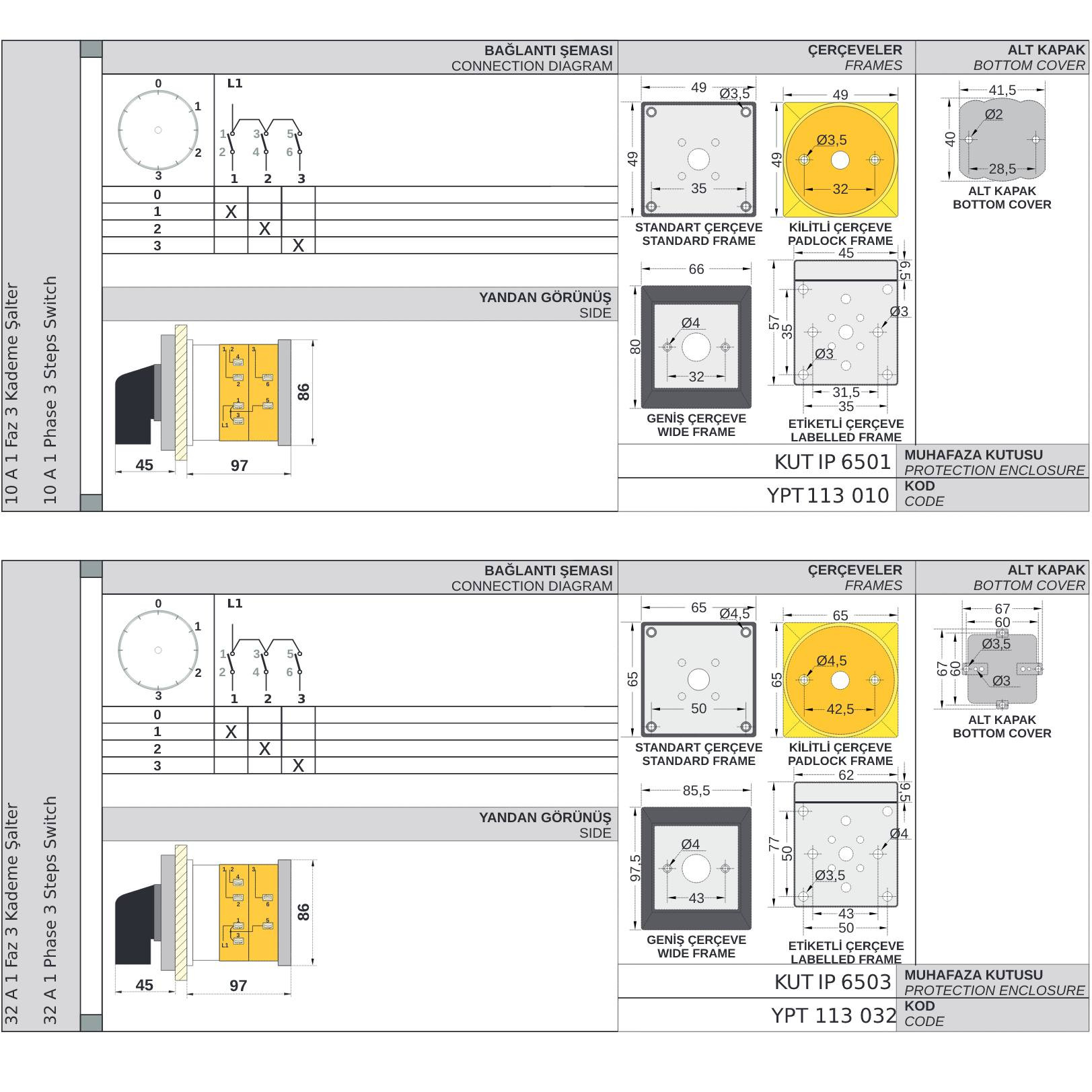

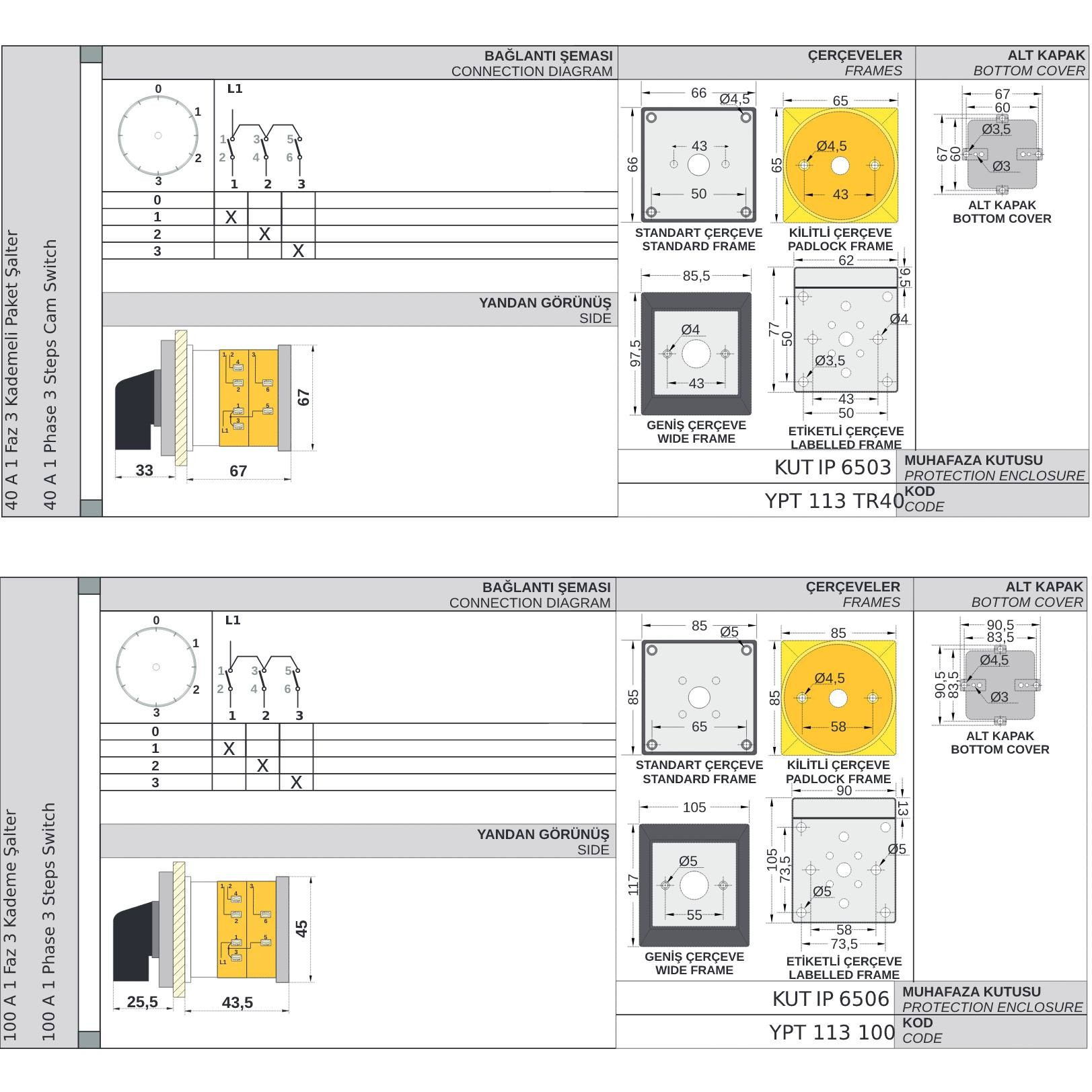

Technical data

Connection: screw connection

Mounting method: centre mounting
